SolidWorks 3D modelling and FEA to design new products and reverse-engineer parts no longer supported by the OEM, drafted to AS1100 for the trades next door.

An ABC Heavy Engineering team member standing on the workshop floor amongst machinery — Fig 02Shows **An ABC Heavy Engineering team member standing on the worksh…**

DESIGN, MODELLING & ANALYSIS IN-HOUSE

Our engineering department uses SolidWorks 3D modelling and FEA structural analysis to design new products and to reverse-engineer parts that are no longer supported by the OEM. Conceptual and workshop drawings are produced for the trades next door, so a design becomes a finished component without leaving the building.

Where a part keeps failing, we redesign it. Design optimisation that removes the stress concentrations that cause failures, then validates the change before any steel is cut.

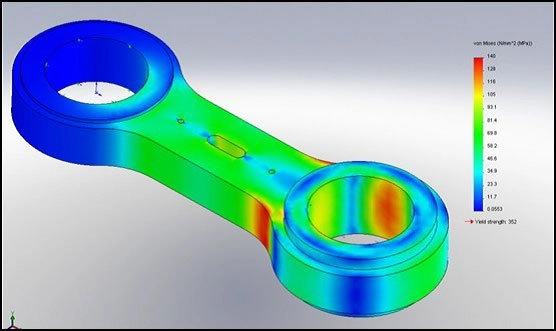

FEA render of a connecting rod showing von Mises stress in a blue-to-red colour map — Fig 03Shows **FEA render of a connecting rod showing von Mises stress in…**

TO RECOGNISED STANDARDS

Analysis and drafting run to recognised standards, with output that the workshop and the client can both rely on.

TOOLS & STANDARDS

Operating envelope, published figures

3D modelling: SolidWorks
Structural analysis: Finite element analysis (FEA)
Drafting standard: AS1100
Drawings: Conceptual and workshop drawings
Specialties: Reverse engineering and design optimisation

FEA stress-analysis render of a spoked wheel under load, showing applied force arrows and a stress legend — Fig G1

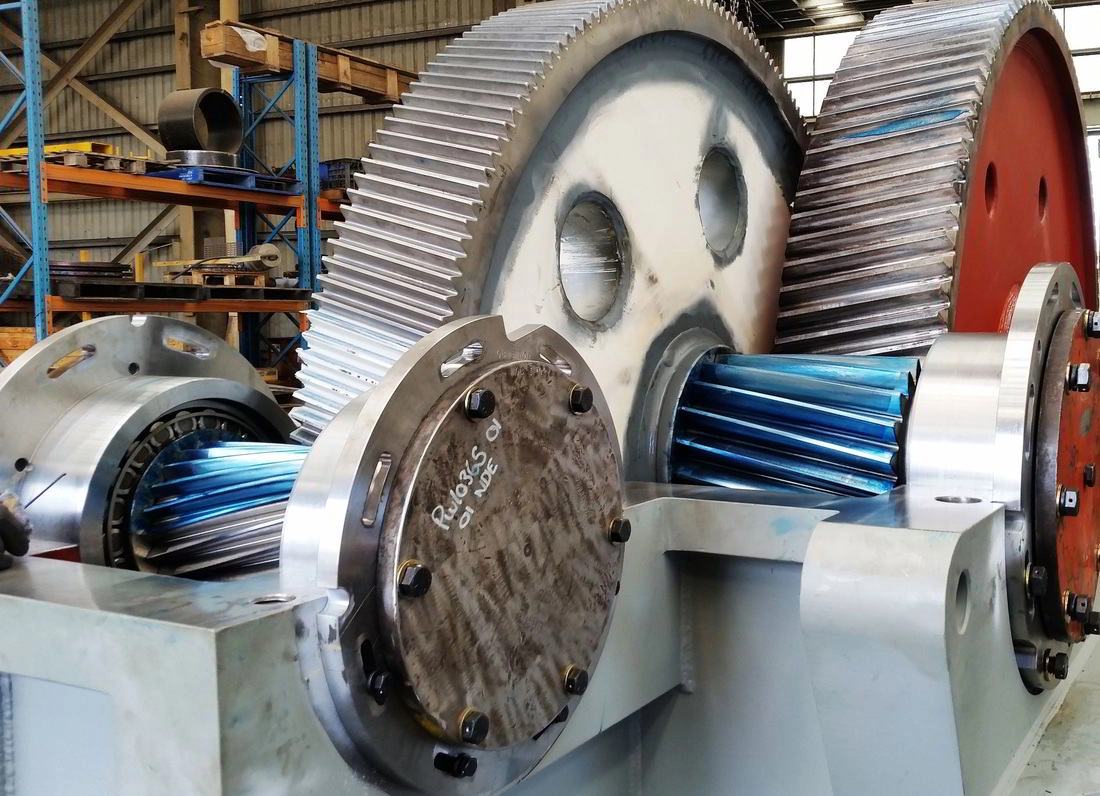

A reverse-engineered gear case assembly built from ABC drawings, fitted on the workshop floor — Fig G3
